E-Line 185 & 260 Large Format Cutters

For larger formats, power and precision are decisive. And it’s precisely these characteristics, combined with a high degree of reliability, that you will enjoy with the E-Line 185 & 260 from Schneider Senator. For problem-free sheet handling these high quality guillotines can also be equipped with various peripheral equipment to create fully automatic cutting lines.

For big cuts: The E-line is fully equipped

High-speed cutter Senator E-Line 185 and 260 with mechanical knife drive and hydraulic clamp

Computer-control with TFT-colour monitor

Electrical drive equipment: 400 volts, 50 cycles (other voltage optional)

CE & EN 1010 - conform

Solid cast iron frame

Pneumatic clutch with overload protection

Ball race lead screw

Infrared safety curtain

Safety bolt

Specially polished cast iron machine table, airblown

Optical cut indicator

2 knives (HSS quality)

5 sinus cutting sticks

Tools

Colour: RAL 7035, light grey

Option: “Trimm-Master” automatic waste removal (through opening of the front table)

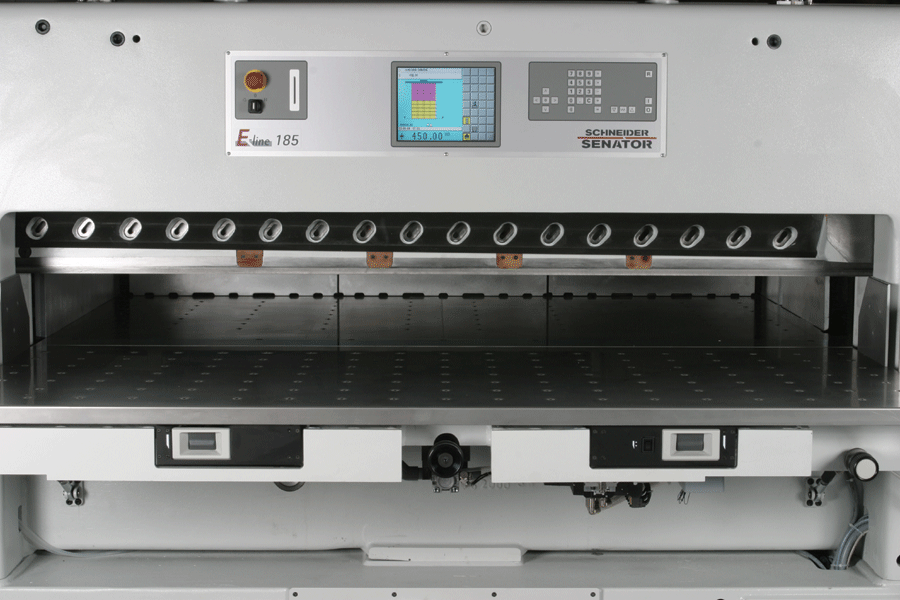

High-speed cutter Senator

E-Line 185 & 260

Cutting with style.

Senators live longer.

These high-speed cutters can take a lot of abuse. Our decades of experience in the manufacturing of high-quality cutters guarantees a long and trouble-free run - even in non-stop production conditions.

The first-class price/performance ratio ensures minimum maintenance,

longevity and outstanding servicability. As an option the E-Line 185 can be delivered with a larger cutting width of 190,6 cm.
